Pix API

Suggest Edits

This is the entry point for integrating with Fiserv PSP Pix APIs.

Use this page as a quick guide to understand the full journey, required prerequisites, and where each capability is documented.

Step 1: Choose Your Integration Path

Choose the approach that best fits your business needs. Both paths support core transactional operations, but differ in onboarding, resilience, and feature set.

FeaturePSP FiservPix HubDescription
PSP load balancing✗✓Distributes transaction volume across PSPs
Failover to secondary PSP✗✓Switches automatically if the primary PSP fails
Document validation (iGaming)✓✗Validates user documents (ID and proof of address)
Settlement management (Grocery)✓✗Handles settlement cycles, account checks, and compliance
Payer data✓✗Provides payer data for tracking and reconciliation
Static QR-Code✓✗Creates fixed QR codes for recurring payment links
Cash-out✓✗Allows withdrawals to registered bank accounts
Automatic settlement✓✓ (PSP Fiserv accounts only)Transfers settled funds to the merchant account automatically

Authentication: Both paths use the same OAuth token — no credential changes are required when switching paths.

PSP Fiserv at a Glance

Choose this path if:

  • Single PSP operation — You run with one Fiserv PSP account (no failover or load balancing)
  • iGaming or high-risk platforms — You need document validation (ID, proof of address)
  • Retail/Grocery operations — You need advanced settlement management and compliance controls
  • Custom integration needs — You need features tightly customized to Fiserv APIs
  • Banking model workflow — You follow a traditional banking flow with account and transfer management

Pix Hub at a Glance

Choose this path if:

  • Multi-PSP resilience — You need automatic failover to a secondary PSP
  • Load balancing across PSPs — You want to distribute volume across PSP providers
  • Charges-only operation — You only need payment collection (charges)
  • Merchant marketplace — You are an ISV serving multiple merchants and need PSP flexibility

Step 2: Follow Your Path

PSP Fiserv

For the complete step-by-step integration guide — including endpoint sequence, async callbacks, and credentials to store — see Direct Integration Guide.

Pix Hub

For the complete step-by-step integration guide — including endpoint sequence, terms acceptance flow, store provisioning, and async callbacks — see Pix Hub Integration Guide.

Next Steps

After choosing your integration path:

  1. Review your path's checklist — Understand the exact sequence of API calls

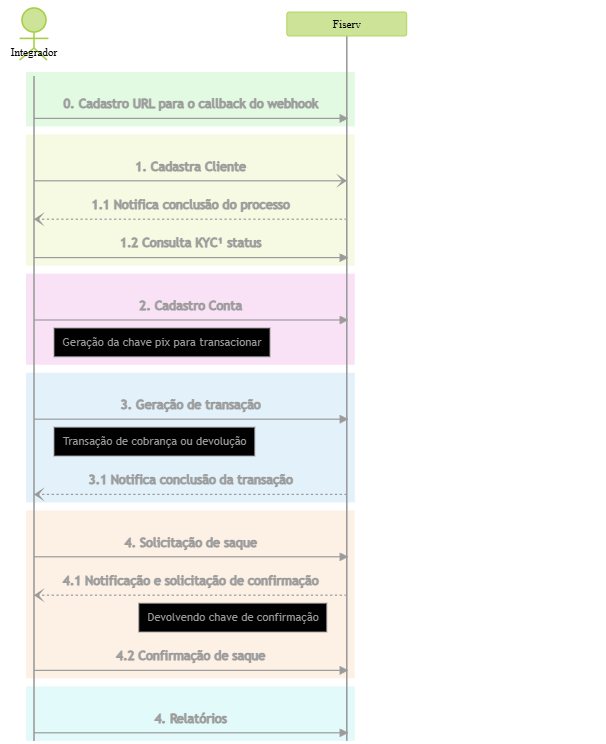

  2. Study the sequence diagrams — Visualize the flow and key decision points
  3. Review the callback table — Plan your webhook handlers
  4. Access API documentation — Link to Fiserv API endpoint reference
  5. Start in Sandbox — Configure your test environment before production
  6. Monitor your implementation — Track webhook delivery and implement error handling

Updated 19 days ago
